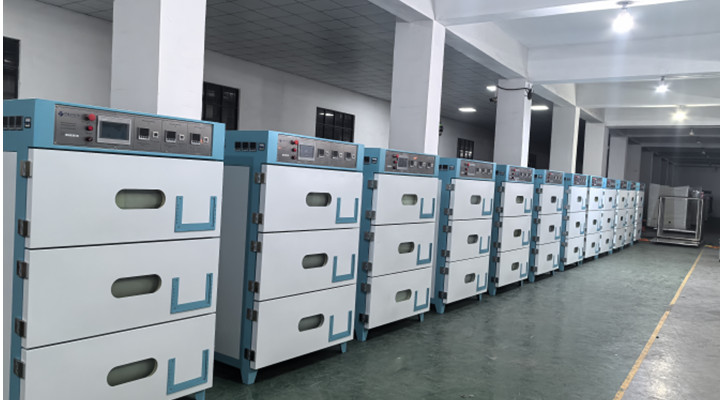

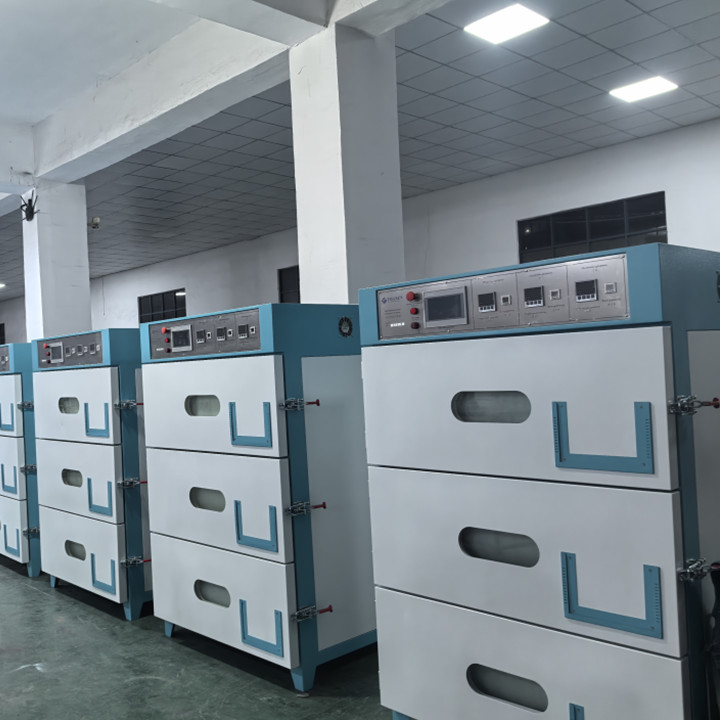

Vacuum Drying Oven for Battery Making Machine

Description

Model Number:Zoway-JK-ZKHX-A3
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:18659217588

Content

Email: imani@batterypackassembly.com

Features

This oven is mainly used with square vacuum chamber, can make full use of space. Pumping speed fast and efficient, high vacuum, easy to operate. Toughened bulletproof double glass observation window clearly the object of the working chamber. The tightness of the box can be adjusted, the overall shape of the silicon rubber gasket to ensure a high vacuum chamber. This product is suitable for the production process of electronic products off the bubble, dehydration, hardening and drying after cleaning treatment under vacuum heat treatment, the LED optical original lithium battery, and battery electrode,and so on, has a high reputation in the electric industry field.

Specifications

Parameter	performance
Description/model	Battery special vacuum oven
Workroom size	height:300mm width: 800mm depth: 600mm*3 layers
Outline size	height:1850mm width:1420 mm depth: 890mm
Working temperature	room temperature :+15℃~200℃
The speed of risingtemperatur	not more than 120 minutes when rising to the max.temperature
Heating power	4.5KW*3
Electrical supply	Three- phases380V
Outside material	Cold-rolled plate,spay platics
Color	According to the customer’s color standard
Working room material	SUS304 stainless steel plate
Stratified	Multi
Layer floor	2 layer mesh partition / layer
Exhaust connection	back
Open method	Single-door, flexible double steel glass, with over pressure protection function
Sealing ring	silicone rubber ring with high temperature resistance, no connector
Temperature instrumentation	digital temperature controller
Temperature control mode	PID regulator
Temperature accuracy	±1℃
Temperature uniformity	±5℃
Temperature Sensor	PT100
Timing Control	10 -hour timer, the alarm buzzer
Over temperature protection	over-temperature protection,when over the temperature, cut off the heating power and alarm buzzer
Heating device	Heating wire
Vacuum	100Pa, 6 hours pointer does not move ,12 hours to keep 98% , 24 hours to keep 95%
Gas leakage	≤300pa/h
Remark	three studios to work independently, independent heating, three sets of temperature control system, can work alone, can also work at the same time.Manual control vacuum switch, vacuum- sealed well when the power cut. The vacuum chamber can be individually, separately add nitrogen, without disturbing each other
