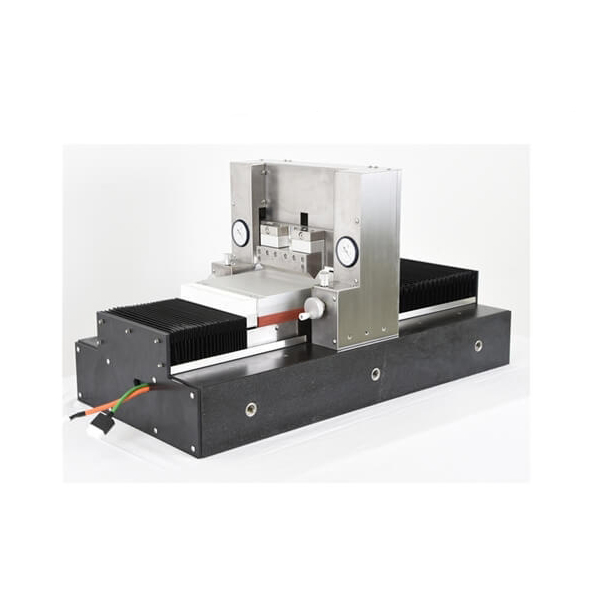

High Precision Thin Film Slot Die Coater for Laboratory Use

Description

Model Number:Zoway-SDC
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:18659217588

Content

Email: imani@batterypackassembly.com

Manual feeding on the coating platform (fixed by adsorption) - feeding system feeding die head - coating platform forward positioning - die head down positioning - start coating - coating system coating according to the set parameters - coating completion - feeding stop - manual product removal - completion. We will still provide preuium slot die coater for you!

Equipment composition

1) Substrate positioning platform

2) Feeding system

3) Slit coating unit

4) Platform adsorption

5) Coating die position control, platform moving unit

Specifications

1. Basic parameters of base material
Type	Glass, silicon, flexible/soft sheet
Thickness	0.05~3mm
Base material length and width	Max.200mm W X 300mm L
2. Coating parameters
Coating thickness (dry)	0.05-15um(for reference, actual depends on solution characteristics)
Solid content	10-70
Viscosity	1-10000cp
3. Basic parameters of the machine
Coating method	Slot die coating
Effective width of coating	Max. 200 mm；
Coating platform speed	0.06m-3m/min
Coating platform	250mm W*350mm L,Platform flatness: ± 0.05mm
Power Supply	220 V, 50 Hz
Total power	Max. 2 KW （with heating on）
Air source	0.6 MPa
Machine dimensions	Max. 1200mm L X 450mm W X 450 mm H(for reference, subject to final dimensions)

Coating unit

Coating method	Slot die coating
Distance between die head and platform	Fine adjustable range: 0.01-10mm Unit adjustment accuracy: 0.002mm Coarse adjustable range: 0-20mm With cleaning tank
Die head (effective width 200 mm)	included
Platform driven	Servo motor + ball screw + servo controller

Platform adsorption/baking unit

Heating platform	Al alloy, surface oxidation, accuracy 20μm
Heater	Electric heating components
Heating temperature	Temperature: RT-160 ℃, temperature control accuracy ≤± 3℃ (effective area: 200mmX300mm)
Platform adsorption	Aperture: 0.5mm , hole spacing: 25mm
