Micro Omni-Directional Planetary Ball Mill

Description

Model Number:Zoway-OPBM
1. Compliance:CE Certified
2. Warranty:2 Year limited warranty with lifetime support
3. Delivery Time:In Stock

Email: imani@batterypackassembly.com
Tel:+86 13174506016
WhatsApp:+86 13174506016
WeChat:18659217588

Content

Email: imani@batterypackassembly.com

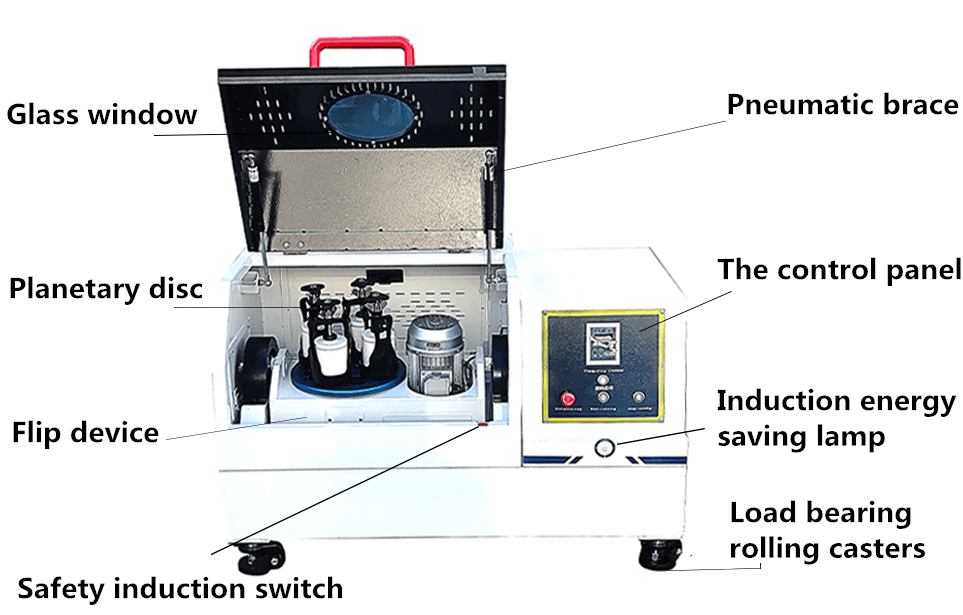

Planet flipping mechanism

Planetary transmission mechanism through the rotation of the motor to do 360 degrees around the axis, can realize any angle positioning for different process requirements ball grinding, safe and reliable.

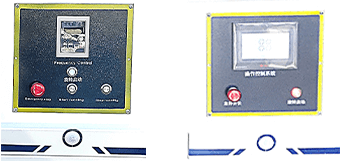

The control panel

Frequency conversion speed control, high speed accuracy, with undervoltage, over current, overload protection, optional 4.5-inch touch screen setting free and program mode, program storage is very convenient.

Self-lubricating device

Through the electronic control of lubrication host, flexible design of time cycle automatic and quantitative grease, to solve the problem of wear caused by not timely lubrication of transmission components, shorten the service life of equipment.

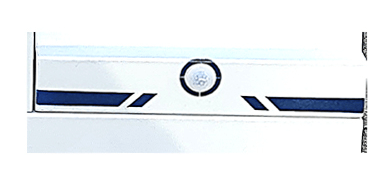

Induction lamp energy device

The energy-saving device is controlled by infrared human body sensor, the lamp will be bright when people come, and the lamp will go off after dozens of seconds, which is both energy-saving and convenient.

Introduction

The omnidirectional planetary ball mill is based on the vertical planetary ball mill and adds the function of planetary transmission mechanism. 360° flip, realize the multi-dimensional and multi-directional movement of the grinding ball and the material in the ball milling tank, and improve the degree of disordered movement of the grinding ball and the material. The material can be more uniform, and it can solve the problem of some materials sinking to the bottom and sticking to the tank.

Product character

Mode of transmission	Gear transmission
Mode of working	Two and four ball grinding jars work simultaneously
Maximum loading capacity of materials	Two thirds of the volume of the ball mill jar
Ball mill tank volume	0.05-10L per jar, total volume 0.2-40L
Feed granularity	Soil material≤10mm, and other materials≤3mm
Granularity of discharge	Up to 1 micron
Mode of speed regulation	Infinitely adjustable-speed

Model	Volume	Configurable ball mill specifications	Qty	Configurable vacuum ball mill volume	Locking device
OPBM-0.4	0.4	50-100ml	4	50ml	automatic
OPBM-1	1	50-250ml	4	50-100ml	automatic
OPBM-2	2	50-500ml	4	50-250ml	automatic
OPBM-4	4	250-1000ml	4	50-500ml	automatic
OPBM-6	6	1-1.5L	4	50-1000ml	automatic
OPBM-8	8	1-2L	4	50-1500ml	automatic
OPBM-10	10	1-2.5L	4	1-2L	automatic
OPBM-12	12	1-3L	4	1-2L	automatic
OPBM-16	16	2-4L	4	1-3L	automatic
OPBM-20	20	2-5L	4	2-4L	automatic
OPBM-40	40	5-10L	4	4-5L	automatic
OPBM-60	60	10-15L	4	5-10L	automatic
OPBM-80	80	15-20L	4	10-15L	automatic
OPBM-100	100	20-25L	4	15-20L	automatic

Model	Power supply	Power(kw)	Rotary motor power(KW)	Total time to run the set(min)	Alternating positive and negative running time(min)	Adjustable speed Revolution(rpm) Rotation(rpm)
OPBM-0.4	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	47-465	94-930
OPBM-1	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-2	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-4	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-6	220V-50HZ(single-phase)	0.75	0.12	1-9999	1-9999	35-370	70-740
OPBM-8	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-10	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-12	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-16	380V-50HZ(three-phase)	3	0.12	1-9999	1-9999	30-255	60-510
OPBM-20	380V-50HZ(three-phase)	4	0.75	1-9999	1-9999	25-215	50-430
OPBM-40	380V-50HZ(three-phase)	5.5	0.75	1-9999	1-9999	20-195	40-390
OPBM-60	380V-50HZ(three-phase)	7.5	1.1	1-9999	1-9999	27-174	40-260
OPBM-80	380V-50HZ(three-phase)	11	1.5	1-9999	1-9999	27-160	40-240
OPBM-100	380V-50HZ(three-phase)	11	1.5	1-9999	1-9999	27-160	40-240

Model	Standard panel (optional touch screen)	Lubrication way（optional automatic grease-adding device）	Mode of speed regulation	Weight(kg)	Size(Length * width * height)	Noise≤db
OPBM-0.4	intelligent	grease	Frequency control	140	900570650	55±5
OPBM-1	intelligent	grease	Frequency control	280	1330770810	60±5
OPBM-2	intelligent	grease	Frequency control	280	1330770810	60±5
OPBM-4	intelligent	grease	Frequency control	285	1330770810	60±5
OPBM-6	intelligent	grease	Frequency control	290	1330770810	60±5
OPBM-8	intelligent	grease	Frequency control	345	1350850900	60±5
OPBM-10	intelligent	grease	Frequency control	345	1350850900	65±5
OPBM-12	intelligent	grease	Frequency control	350	1350850900	65±5
OPBM-16	intelligent	grease	Frequency control	400	15509401050	65±5
OPBM-20	intelligent	grease	Frequency control	710	170012001250	68±5
OPBM-40	intelligent	grease	Frequency control	1000	190014501400	68±5
OPBM-60	intelligent	grease	Frequency control	2180	215017502090	68±5
OPBM-80	intelligent	grease	Frequency control	2400	230019002140	68±5
OPBM-100	intelligent	grease	Frequency control	2400	230019002140	68±5
